Description

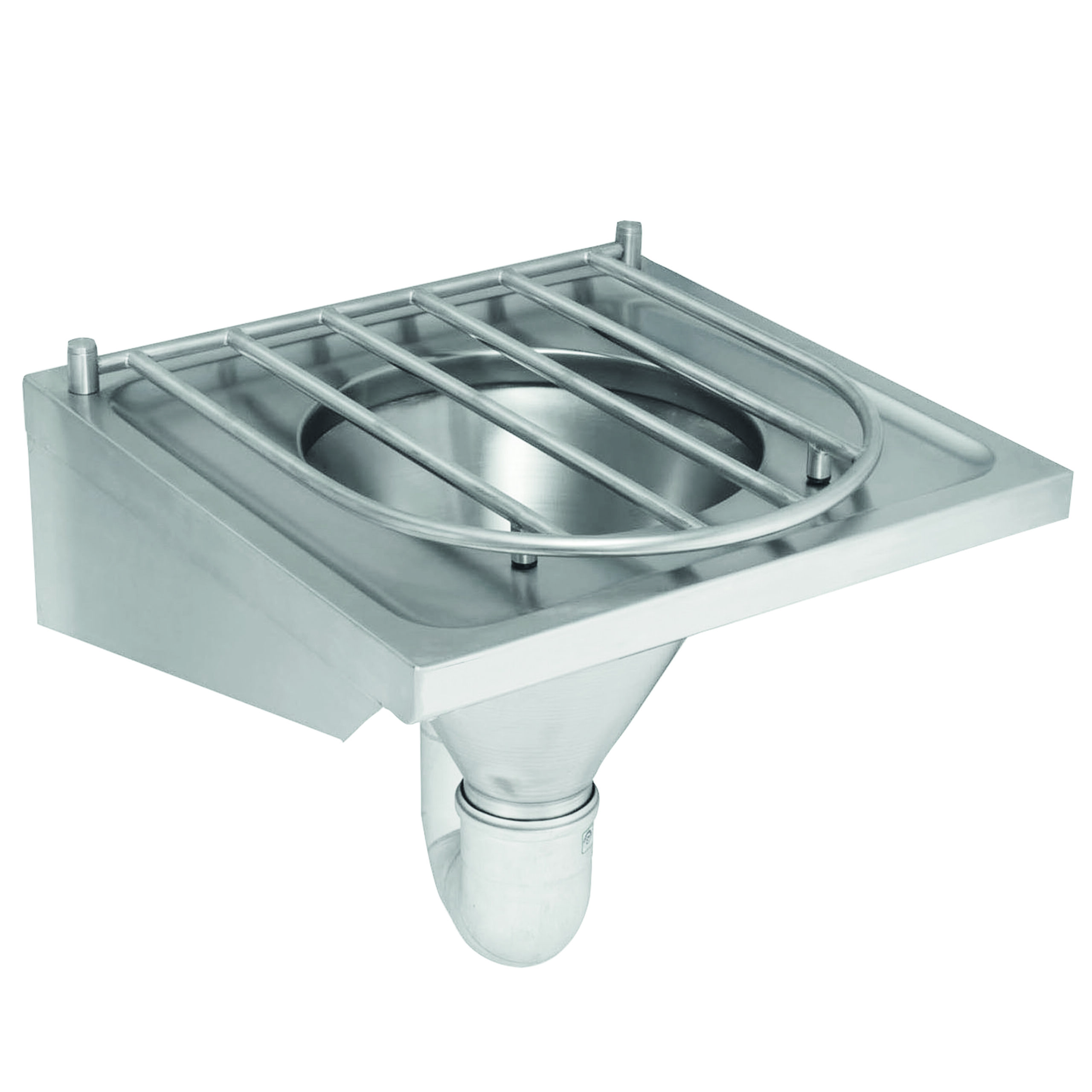

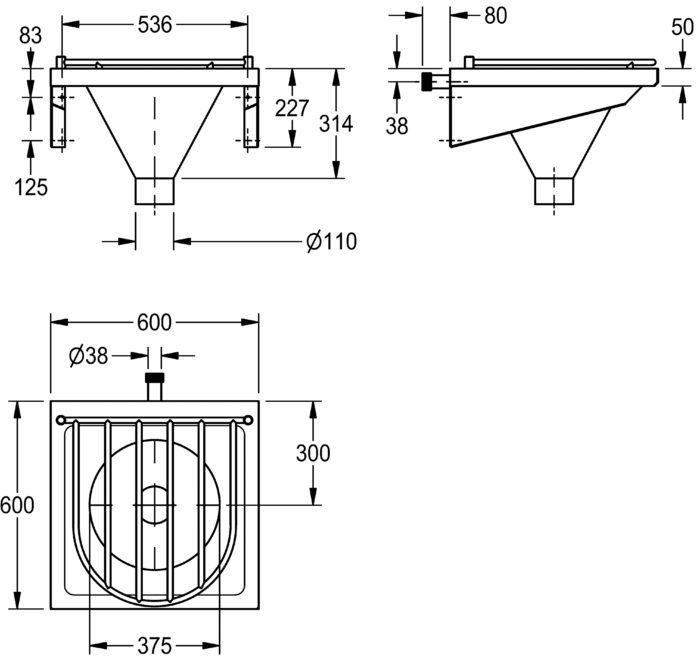

Wall mounted domestic services disposal unit. Manufactured from 1.2mm thick, grade 1.4301 (304) stainless steel with satin finish. Incorporates a sluice hopper with a back inlet suitable for duct mounting. The hopper is designed with a 110mm diameter outlet which can accept a P trap (sold separately). The unit should only be fed from a cistern or tank water supply.
A duct mounted 9 litre plastic cistern is available separately, this is supplied with a plastic downpipe, plastic float and metal flushing lever handles. The unit is fixed to the wall using two cantilever brackets and wall fixings (sold separately). Manufactured in accordance with HTM 64 / HBN 00-10, Part C Standards.
